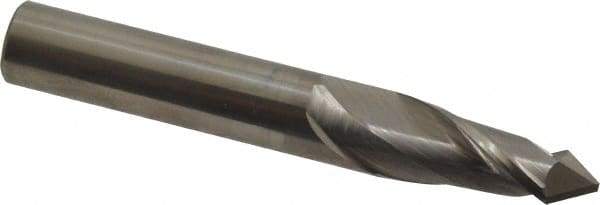

Melin Tool - 10mm Diam, 25mm LOC, 2 Flute, 90° Point Angle, Solid Carbide Drill Mill - Uncoated, 2-3/4" OAL, 10mm Shank Diam
Item #: 78715133
Brand: Melin Tool
Model #: 13381
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (mm) | 10.00 |
| Shank Diameter (mm) | 10.00 |
| Length of Cut (mm) | 25.00 |
| Point Angle | 90 |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Overall Length (mm) | 70.00 |
| Overall Length (Inch) | 2-3/4 |
| Material Grade | Micrograin |
| Helix Angle | 30 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.000/-0.050 |
