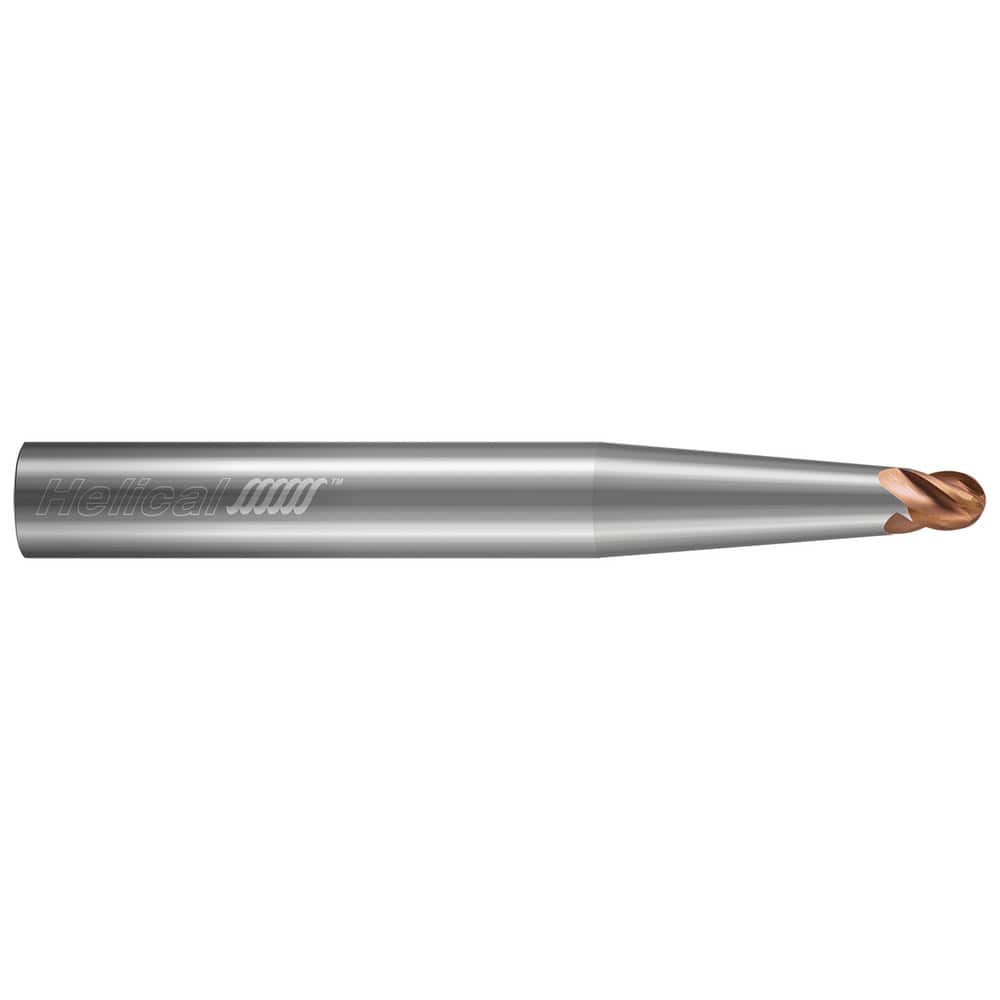

Tapered End Mills; Mill Diameter (Decimal Inch): 0.1875; Length of Cut (Inch): 1/4; Taper Angle Per Side: 3.00; End Mill Material: Solid Carbide; End Shape: Ball; Flute Type: Spiral; Overall Length (Decimal Inch): 3.5000; Overall Length (Inch): 3-1/2; Cen
Item #: 78703766
Brand: Helical
Model #: 86455
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 1/4 |
| Taper Angle Per Side | 3.00 |
| End Mill Material | Solid Carbide |
| End Shape | Ball |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Small End Diameter (Decimal Inch) | 0.1875 |
| Small End Diameter (Inch) | 3/16 |
| Flute Direction | Right Hand |
| Series | End Mills for Stainless & High Temp - Contour Finishers - 4 Flute - Ball - Tapered Neck |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Coolant Through | No |
| Coating/Finish | Tplus |
| Number Of Flutes | 4 |
| Included Angle Degree | 6 |
