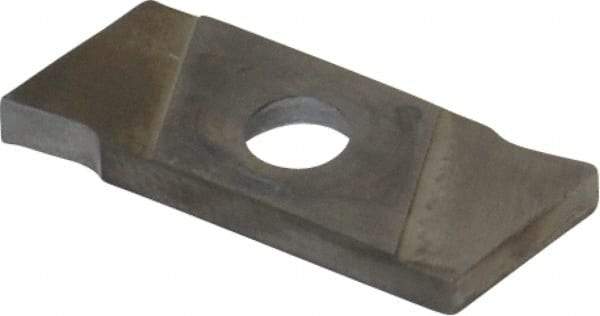

NIKCOLE MINI-SYSTEMS - GIE2 0.0787" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, TiN Coated
Item #: 78676202
Brand: NIKCOLE MINI-SYSTEMS
Model #: GIE7GP2.0R N C2
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GIE |
| Insert Size | 2 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Material Grade | C2 |
| Coating | TiN |
| Series | Nikcole Mini-Systems |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Full Radius | No |
| Multi-Use Application | Cut-Off; Grooving |
| Overall Length (mm) | 17.00 |
| Overall Length (Decimal Inch) | 0.6693 |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Insert Hand | Right Hand |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch) | 0.0787 |
