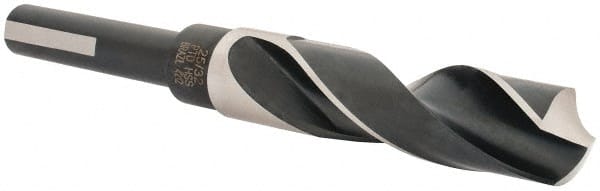

Reduced Shank Drill Bit: 25/32'' Dia, 1/2'' Shank Dia, 118 ™, High Speed Steel 6'' OAL, 3'' Flute Length, Bright/Uncoated Finish, Weldon Shank, RH Cut, Series R57
Item #: 78580511
Brand: Precision Twist Drill
Model #: 5999655
Product Specifications
| Drill Bit Size (Inch) | 25/32 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Tool Material | High Speed Steel |
| Drill Point Angle | 118 |
| Point Type | Standard |
| Shank Type | Weldon |
| Flute Length (Inch) | 3 |
| Overall Length (Inch) | 6 |
| Coating/Finish | Bright/Uncoated |
| Series | R57 |
| Number Of Flats | 3 |
| Drill Bit Size (Decimal Inch) | 0.7812 |
| Shank Diameter (Decimal Inch) | 1/2 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Spiral Type | Regular |
| Tool Performance | General Purpose |
| Drill Length Type | Reduced Shank |
| Maximum Drilling Depth (Decimal Inch) | 3.0000 |
| Flute Length x Diamter Ratio | 4xD |
| Primary Workpiece Material | Ferrous Metal |
| Secondary Workpiece Material | Synthetic; Aluminum; Cermet; Titanium; Nickel; Magnesium; Copper |
| Secondary Workpiece Material Code | P; S; H; K; M; N; O |
| Coolant | No |
| Standards | ANSI |
