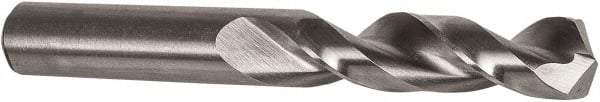

Precision Twist Drill - #12 135° Parabolic Flute High Speed Steel Screw Machine Drill Bit - Bright Finish, Right Hand Cut, 1-3/16" Flute Length, 2-1/4" OAL, Split Point, Straight Shank
Item #: 78572633
Brand: Precision Twist Drill
Model #: 060012
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes have a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.1890 |
| Drill Bit Size (Wire) | #12 |
| Drill Point Angle | 135 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (Inch) | 1-3/16 |
| Overall Length (Inch) | 2-1/4 |
| Point Type | Split Point |
| Specification Designation | ANSI |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Series/List | QC41P |
