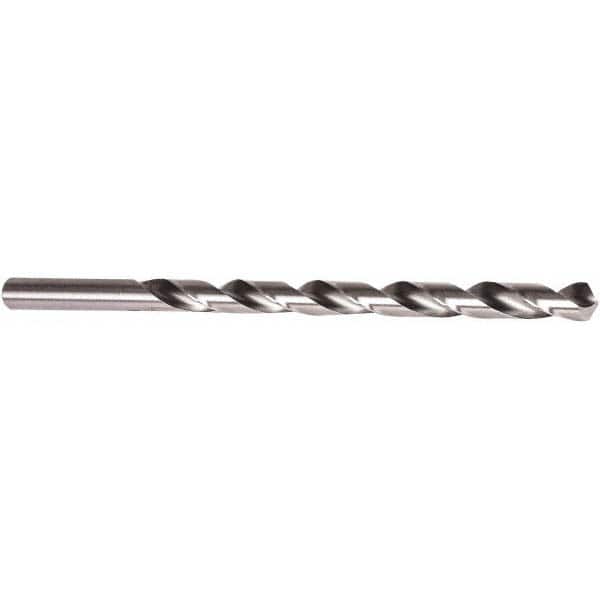

Extra Length Drill Bit: 0.1875″ Dia, 118 °, High Speed Steel Uncoated, 11″ Flute Length, 15″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series 1511
Item #: 78571577
Brand: Precision Twist Drill
Model #: 5999851
Product Specifications
| Drill Bit Size (Inch) | 3/16 |
| Overall Length (Inch) | 15 |
| Flute Length (Inch) | 11 |
| Tool Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Drill Point Angle | 118 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | 1511 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Synthetic; Titanium; Aluminum Magnesium; Nickel; Copper |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Secondary Workpiece Material | Magnesium Alloy; Stainless Steel; Nickel; Magnesium; Reinforced Plastic Materials; High Strength Bronze; Steel; Nickel Alloy; Malleable Iron; Hardened Steel |
| Standards | ANSI |
| Drill Bit Grade | General Purpose |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 15.0000 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Shank Length (Decimal Inch) | 4.0000 |
| Flute Length (Decimal Inch) | 11.0000 |
| Flute By Diameter Ratio | 15xD |
| Specification Designation | ANSI |
