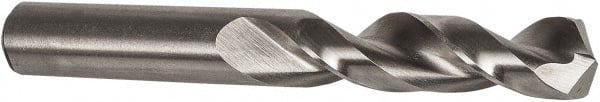

Screw Machine Length Drill Bit: 0.6875″ Dia, 135 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series QC41P
Item #: 78569076
Brand: Precision Twist Drill
Model #: 5997268
Product Specifications
| Drill Bit Size (Inch) | 11/16 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.6875 |
| Drill Bit Size (Decimal Inch) | 0.6875 |
| Overall Length (Inch) | 4-5/8 |
| Series | QC41P |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Standards | ANSI |
| Flute Length (Inch) | 2-7/8 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Designation | ANSI |
