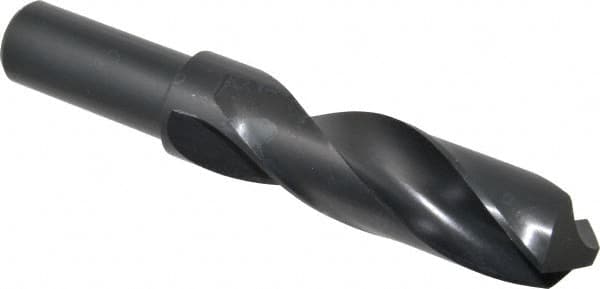

Screw Machine Length Drill Bit: 1.25″ Dia, 118 °, High Speed Steel Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series R40
Item #: 78544293
Brand: Precision Twist Drill
Model #: 5998513
Product Specifications
| Drill Bit Size (Inch) | 1-1/4 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Drill Bit Size (Decimal Inch) | 1.2500 |
| Overall Length (Inch) | 6-3/4 |
| Series | R40 |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2.5xD |
| Tool Performance | High Performance |
| Standards | ANSI |
| Flute Length (Inch) | 4-3/8 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Designation | ANSI |
