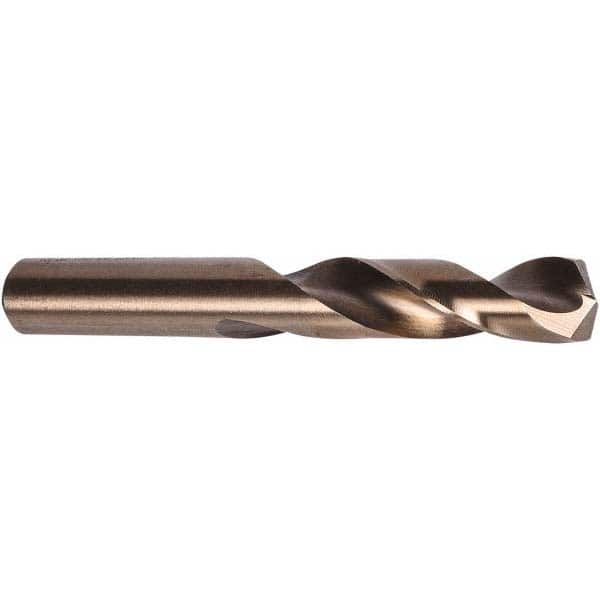

Screw Machine Length Drill Bit: 0.4375″ Dia, 135 °, Cobalt Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series M40CO
Item #: 78544012
Brand: Precision Twist Drill
Model #: 5995998
Product Specifications
| Drill Bit Size (Inch) | 7/16 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Overall Length (Inch) | 3-7/16 |
| Series | M40CO |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 2.5xD |
| Tool Performance | High Performance |
| Standards | ANSI |
| Flute Length (Inch) | 2-1/16 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Specification Designation | ANSI |
| Material Grade | M40 |
