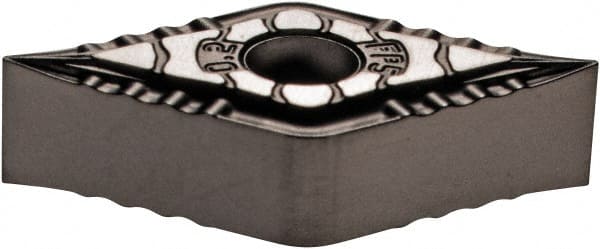

DNMG 330.5-FP5 WPP20S Carbide Turning Insert TiCN/Al2O3/TiN Finish, 15.5mm Long, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 55° Diamond, Series Tiger-tec
Item #: 78289956
Brand: Walter
Model #: 6065869
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 330.5 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP20S |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | Tiger-tec |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6102 |
| Insert Length (mm) | 15.50 |
| Primary Workpiece Material | P |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | K |
| Secondary Workpiece Material Code | K |
| Ansi Code | DNMG3(3)0.5FP5WPP20S |
| Iso Code | DNMG110402-FP5 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | DNMG33.5-FP5 |
| Material Grade | K30; P20 |
| Chip Breaker | FP5 |
| Single Or Double End | Double |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | Turning |
 | |
| MSC Part # | 78289956 |
| Mfr Part # | 6065869 |
| Country of OriginCountry of Origin is subject to change | Germany |
