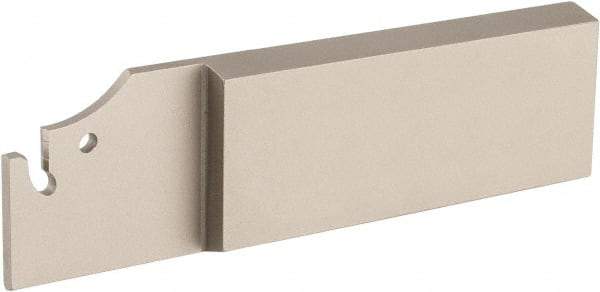

Iscar - 1.26" Blade Height, 0.311" Blade Width, 110.5mm OAL, Right Hand Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 78266137
Brand: Iscar
Model #: 2301871
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 7.90 |
| Blade Width (Decimal Inch) | 0.3110 |
| Blade Overall Length (mm) | 110.50 |
| Blade Style | TGFH |
| Insert Style | TAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
| Insert Width (mm) | 2.80 |
| Insert Width (Decimal Inch) | 0.1102 |
| Series | Tang-Grip |
| Insert Seat Size | 2.5 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6500 |
| Cutting Height (mm) | 24.80 |
| Cutting Height (Decimal Inch) | 0.9764 |
| Minimum Insert Width (mm) | 2.80 |
| Minimum Insert Width (Decimal Inch) | 0.1102 |
| Maximum Insert Width (mm) | 3.50 |
| Maximum Insert Width (Decimal Inch) | 0.1378 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
| Complete Tool Block/Toolholder Style Compatibility | C..TBK..,HS..TBK..,IM..TBK..,SGT.. |
