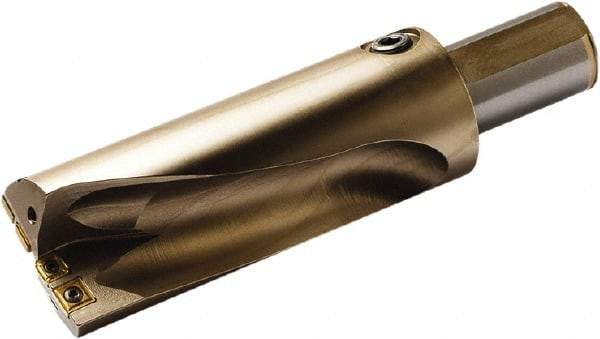

Seco - 175mm Max Drill Depth, 2.5xD, 70mm Diam, Indexable Insert Drill - 4 Inserts, 40mm Shank Diam, Straight Shank
Item #: 78216009
Brand: Seco
Model #: 34749
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD542 |
| Drill Diameter (mm) | 70.00 |
| Drill Diameter (Decimal Inch) | 2.7559 |
| Maximum Drill Depth (mm) | 175.00 |
| Maximum Drill Depth (Decimal Inch) | 6.8898 |
| Shank Type | Straight |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Number of Drill Inserts | 4 |
| Overall Length/Projection (mm) | 294.50 |
| Overall Length/Projection (Decimal Inch) | 11.5945 |
| Insert Compatibility (Outside or Peripheral) | SCGX 120408.. |
| Insert Compatibility | SPGX 11T3-C1 |
| Flute Length (mm) | 182.50 |
| Flute Length (Decimal Inch) | 7.1850 |
| Body Length (Decimal Inch) | 8.9173 |
| Body Length (mm) | 226.50 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
| Collar Diameter (mm) | 79.00 |
| Collar Diameter (Decimal Inch) | 3.1102 |
| Series | PerfoMAX |
