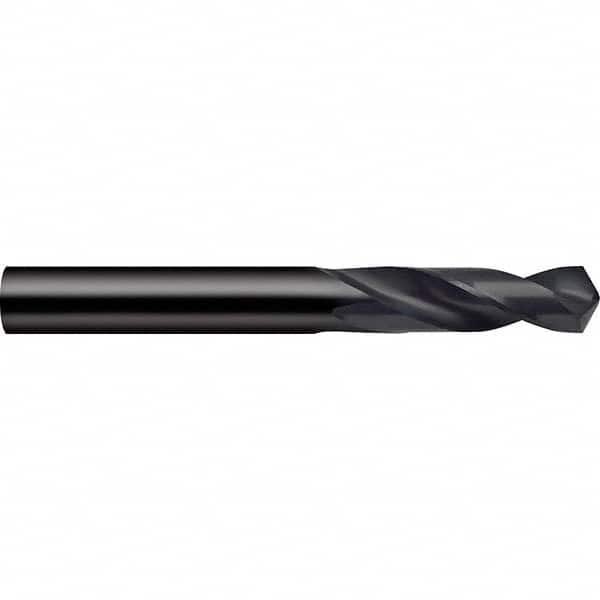

Screw Machine Length Drill Bit: 0.5938″ Dia, 118 °, High Speed Steel Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 223
Item #: 78168879
Brand: Guhring
Model #: 9002230150800
Product Specifications
| Drill Bit Size (Inch) | 19/32 |
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5938 |
| Drill Bit Size (Decimal Inch) | 0.5938 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Shank Diameter (mm) | 15.08 |
| Series | 223 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.3930 |
| Maximum Drilling Depth (mm) | 35.38 |
| Shank Length (Decimal Inch) | 2.2441 |
| Shank Length (mm) | 57.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.000 to -0.027 mm |
| Standards | DIN 1897 |
| Flute Length (mm) | 58.00 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
| Material Grade | M2 |
