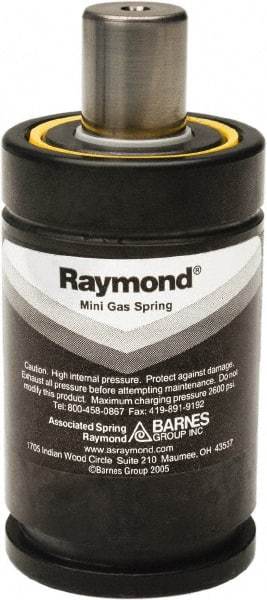

Associated Spring Raymond - M6 Int Rod, M6 Fill Port, M6 Mt Hole, 20mm Rod Diam, 38mm Diam, 100mm Max Stroke, Black Nitrogen Gas Spring Cylinder - 130mm Body Length, 230mm OAL, 1,600 Lb Full Stroke Spring Force, 360 psi Initial Charge
Item #: 78110103
Brand: Associated Spring Raymond
Model #: X500-100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Hole Thread Size | M6 |
| Internal Rod Thread (mm) | M6 |
| Fill Port | M6 |
| Color | Black |
| Initial Charge Pressure (psi) | 360 |
| Initial Charge Pressure (bar) | 25 |
| Diameter (mm) | 38 |
| Body Length (mm) | 130 |
| Body Length (Decimal Inch) | 5.1181 |
| Diameter (Decimal Inch) | 1.4961 |
| Spring Force Initial (N) | 4693 |
| Spring Force Initial (lbf) | 1060 |
| Spring Force Full Stroke (N) | 7117 |
| Spring Force Full Stroke (lbf) | 1600 |
| Rod Diameter (mm) | 20 |
| Rod Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 230 |
| Overall Length (Decimal Inch) | 9.0551 |
| Maximum Stroke (mm) | 100 |
| Maximum Stroke (Decimal Inch) | 3.9370 |
