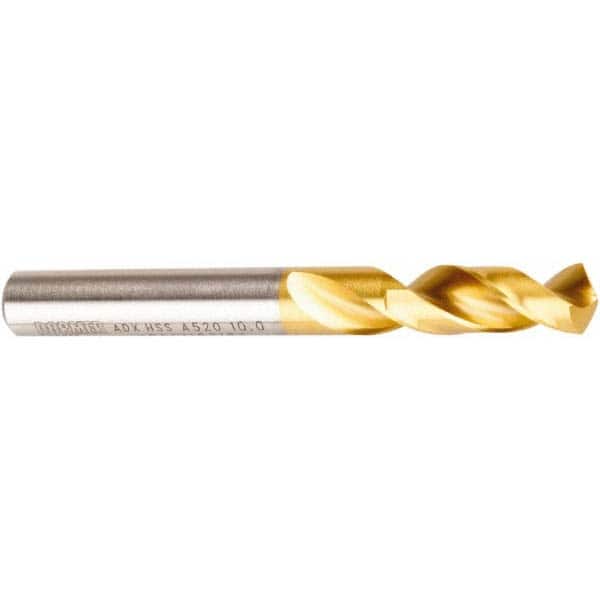

Screw Machine Length Drill Bit: 0.2795″ Dia, 130 °, High Speed Steel TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A520
Item #: 78091014
Brand: DORMER
Model #: 5970559
Product Specifications
| Tool Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | ADX |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.2795 |
| Drill Bit Size (Decimal Inch) | 0.2795 |
| Overall Length (mm) | 74.00 |
| Overall Length (Decimal Inch) | 2.9134 |
| Series | A520 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute Length (mm) | 34.00 |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| Specification Number | DIN 1897 |
| Specification Designation | DIN |
