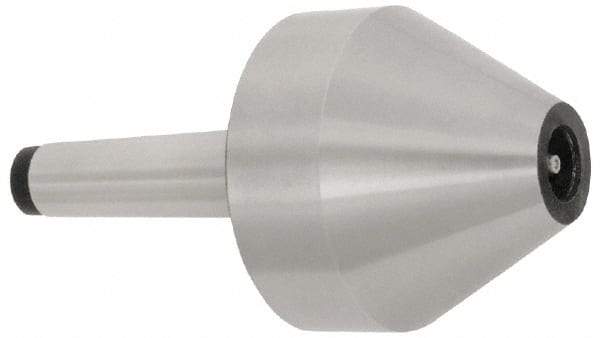

Bison - Live Centers Shank Type: Taper Shank Taper Size: MT3
Item #: 78066362
Brand: Bison
Model #: 7-575-030
Exact Tooling IR#: 04
Features and Benefits
Bull nose points are flat and engineered to position and balance heavy work loads over the bearings. They are designed for thick wall pipe, tubes and parts with large center holes
Product Specifications
Live Centers; Shank Type: Taper Shank ; Taper Size: MT3 ; Maximum Workpiece Weight (Lb.): 770.00 ; Point Style: Bull Nose ; Point Diameter (Decimal Inch): 1.1800 ; Accuracy (Decimal Inch): 0.000300
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 770.00 |
| Point Style | Bull Nose |
| Point Diameter (Decimal Inch) | 1.1800 |
| Accuracy (Decimal Inch) | 0.000300 |
| Head Diameter (Decimal Inch) | 3.1500 |
| Head Length (Decimal Inch) | 2.0900 |
| Overall Length (Decimal Inch) | 5.5100 |
| Point to Gauge Line (Decimal Inch) | 2.3200 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 4500 |
| Material | Alloy Steel |
| Carbide-Tipped | No |
