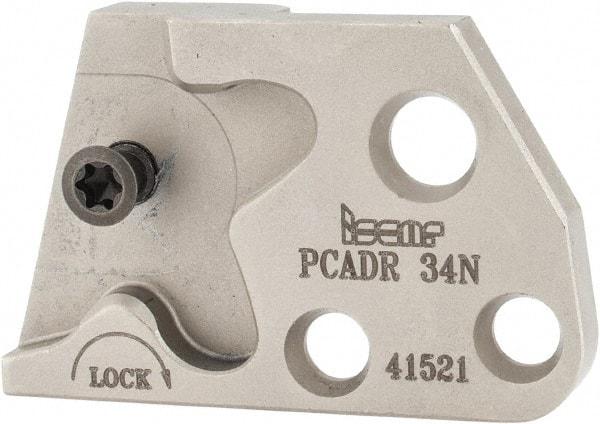

Iscar - 1.5 to 4mm Groove Width, Right Hand Cut, PCAD Indexable Grooving Blade - PENTA 34F-R/L, PENTA 34N-C, PENTA 34N-PB, PENTA 34R/L-C, PENTA 34R/L-PB Insert Style, Series Modular Grip & PentaCut
Item #: 78035839
Brand: Iscar
Model #: 2302161
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Minimum Groove Width (mm) | 1.50 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Blade Style | PCAD |
| Series | Modular Grip; PentaCut |
| Blade Height (mm) | 31.00 |
| Blade Height (Decimal Inch) | 1.2205 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2047 |
| Maximum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 54.20 |
| Overall Length (Decimal Inch) | 2.1340 |
| Manufacturers Catalog Number | PCADR 34N |
| Insert Style | PENTA 34F-R/L; PENTA 34N-C; PENTA 34N-PB; PENTA 34R/L-C; PENTA 34R/L-PB |
| Complete Insert Compatibility | PENTA 34F239-0.15-22L; PENTA 34L150C08D; PENTA 34N150C015; PENTA 34N150PB015; PENTA 34R150PB-6D |
