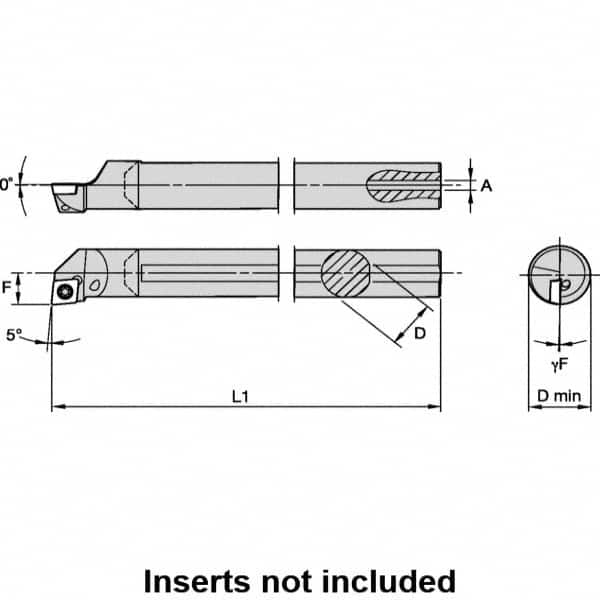

Kennametal - 20mm Min Bore Diam, 202.55mm OAL, 16mm Shank Diam, L-SCLP Indexable Boring Bar - 28.57mm Max Bore Depth, CP.. 09T308 Insert, Screw Holding Method
Item #: 78023660
Brand: Kennametal
Model #: 3331108
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | L-SCLP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 28.57 |
| Maximum Bore Depth (Decimal Inch) | 1.1248 |
| Overall Length (mm) | 202.55 |
| Overall Length (Decimal Inch) | 7.9744 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | CP.. 09T308 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 3.97 |
| Coolant Hole Diameter (Decimal Inch) | 0.1563 |
| Complete Insert Compatibility | CPMT 09T308.. |
| Toolholder Material | Heavy Metal |
