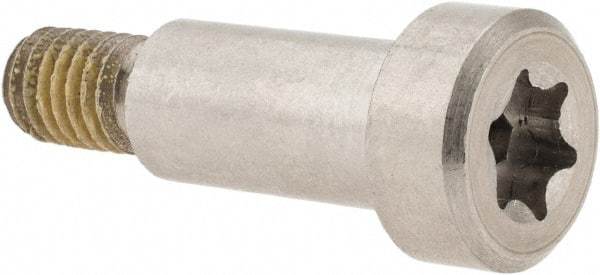

Made in USA - 1/2" Shoulder Diam x 1" Shoulder Length, 3/8-16 UNC, Torx Shoulder Screw - 300 Stainless Steel with Nylon Locking Patch, Uncoated, 3/4" Head Diam
Item #: 77927440
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Torx drive types are also known as star drive fasteners. They have a six-point star recess in the head that increases torque exertion, prevents cam out and boosts fastener life.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.Nylon is a lightweight, nonconductive material used on threads to prevent loosening.
| Product Specifications | |
|---|---|
| Type | Shoulder Screw |
| System of Measurement | Inch |
| Shoulder Diameter (mm) | 12.70 |
| Shoulder Diameter (Inch) | 1/2 |
| Shoulder Diameter (Decimal Inch) | 0.5000 |
| Thread Size | 3/8-16 |
| Shoulder Length (mm) | 25.40 |
| Shoulder Length (Inch) | 1 |
| Drive Type | Torx |
| Material Grade | 300 |
| Material | Stainless Steel with Nylon Locking Patch |
| Finish/Coating | Uncoated |
| Head Height (Decimal Inch) | 0.3125 |
| Thread Standard | UNC |
| Head Diameter (Decimal Inch) | 0.7500 |
| Torx Drive Size | T55 |
