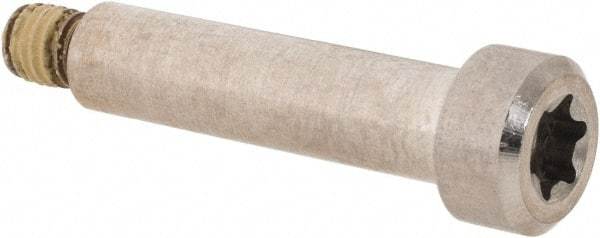

Made in USA - 1/4" Shoulder Diam x 1" Shoulder Length, #10-32 UNF, Torx Shoulder Screw - 300 Stainless Steel with Nylon Locking Patch, Uncoated, 3/8" Head Diam
Item #: 77927184
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Torx drive types are also known as star drive fasteners. They have a six-point star recess in the head that increases torque exertion, prevents cam out and boosts fastener life.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.Nylon is a lightweight, nonconductive material used on threads to prevent loosening.
| Product Specifications | |
|---|---|
| Type | Shoulder Screw |
| System of Measurement | Inch |
| Shoulder Diameter (mm) | 6.35 |
| Shoulder Diameter (Inch) | 1/4 |
| Shoulder Diameter (Decimal Inch) | 0.2500 |
| Thread Size | #10-32 |
| Shoulder Length (mm) | 25.40 |
| Shoulder Length (Inch) | 1 |
| Drive Type | Torx |
| Material Grade | 300 |
| Material | Stainless Steel with Nylon Locking Patch |
| Finish/Coating | Uncoated |
| Head Height (Decimal Inch) | 0.1870 |
| Thread Standard | UNF |
| Head Diameter (Decimal Inch) | 0.3750 |
| Torx Drive Size | T30 |
