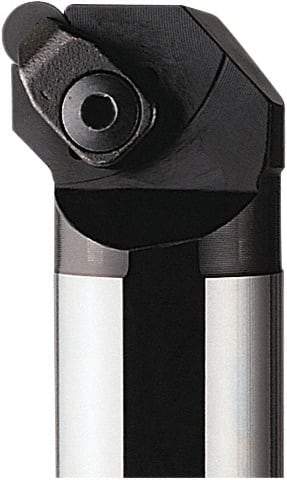

Seco - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, S-CRSN Indexable Boring Bar - 43mm Max Bore Depth, RN.N 0903.. Insert, Clamp Holding Method
Item #: 77907418
Brand: Seco
Model #: 69276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CRSN |
| Series | Clamp Lock |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 43.00 |
| Maximum Bore Depth (Decimal Inch) | 1.6929 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | RN.N 0903.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 45 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -6 |
| Complete Insert Compatibility | RNGN 090300E; RNGN 090300E25; RNGN 090300F-LF; RNGN 090300S; RNGN 090300S-01525; RNGN 090300S-01020; RNGN 090300S-01525-LF; RNGN 090300S-02020-LF; RNGN 090300S-LF; RNMN 090300E; RNMN 090300S; RNMN 090300S-02020 |
| Toolholder Material | Steel |
