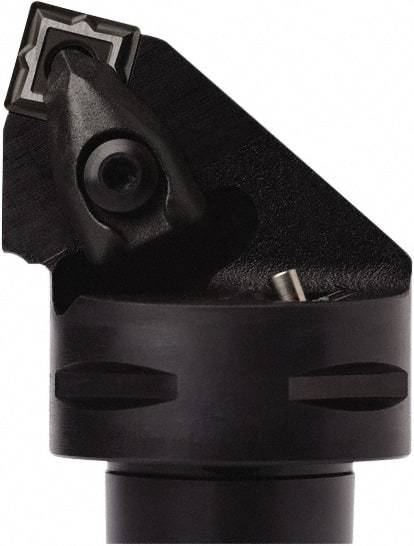

Seco - Left Hand Cut, Size C8, SNMG 643 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 44.96mm Ctr to Cutting Edge, 80.01mm Head Length, Series Seco-Capto
Item #: 77906436
Brand: Seco
Model #: 39385
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 80.01 |
| Head Length/Projection (Decimal Inch) | 3.1500 |
| Insert Style | SNMG 643 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 44.96 |
| Center to Cutting Edge (Decimal Inch) | 1.7700 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 80.01 |
| Neck Diameter (Decimal Inch) | 3.1500 |
| Complete Insert Compatibility | SNMG 643-M3; SNMG 643-M5; SNMG 643-MR4; SNMG 643-MR7 |
