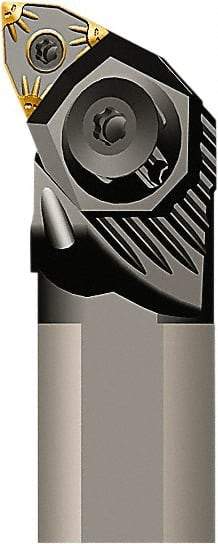

Seco - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-PWLN Indexable Boring Bar - 30mm Max Bore Depth, WN.. 0804.. Insert, Pin Lock Assembly Holding Method
Item #: 77904928
Brand: Seco
Model #: 65809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PWLN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 30.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | WN.. 0804.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WNGA 080408S-01525-L1-C; WNGA 080408S-01525-L1-V; WNGA 080408S-01525-L1-WZ-C; WNGA 080408S-L0-C; WNGA 080408S-L0-WZ-C; WNGA 080412S-01525-L1-V; WNGA 080412S-01525-L1-V-WZ; WNGG 080401-MF1; WNGG 080402-MF1; WNGG 080404-MF1; WNGG 080408-MF1; WNMA 080408; WN |
| Toolholder Material | Steel |
