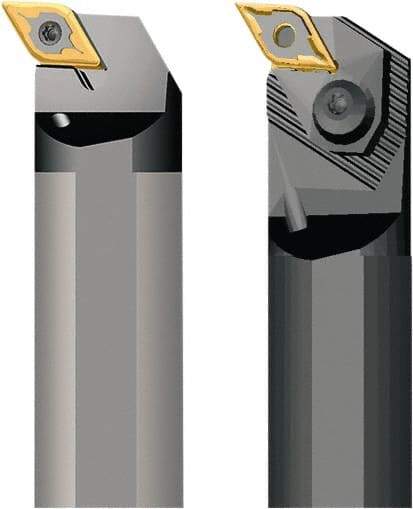

Seco - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-PDUN Indexable Boring Bar - 35mm Max Bore Depth, DNM.. 1104.. Insert, Pin Lock Assembly Holding Method
Item #: 77904902
Brand: Seco
Model #: 83820
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PDUN |
| Series | Pin Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 35.00 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | DNM.. 1104.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -5 |
| Complete Insert Compatibility | DNMA 110408S; DNMA 110416S; DNMU 1104; DNMU 110402-M3; DNMU 110404-FF2; DNMU 110404-M3; DNMU 110404-MF1; DNMU 110404-MF2; DNMU 110404-MF4; DNMU 110404-MF5; DNMU 110408-FF2; DNMU 110408-M3; DNMU 110408-M5; DNMU 110408-MF1; DNMU 110408-MF2; DNMU 110408-MF4 |
| Toolholder Material | Steel |
