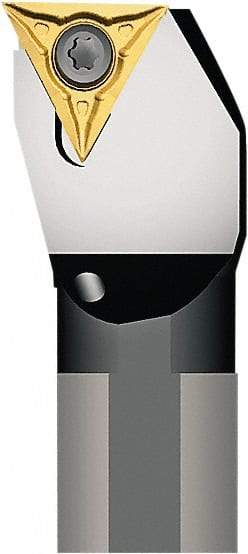

Seco - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-STFC Indexable Boring Bar - 50mm Max Bore Depth, TC.. 16T3.. Insert, Screw Holding Method
Item #: 77904647
Brand: Seco
Model #: 93862
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | TC.. 16T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCGT 16T304F-AL; TCGT 16T308F-AL; TCMT 16T302-F1; TCMT 16T304-F1; TCMT 16T304-F2; TCMT 16T304-M3; TCMT 16T304-MF2; TCMT 16T308-F1; TCMT 16T308-F2; TCMT 16T308-M3; TCMT 16T308-M5; TCMT 16T308-MF2; TCMT 16T312-F1; TCMT 16T312-M5; TCMW 16T304F-L1 |
| Toolholder Material | Steel |
