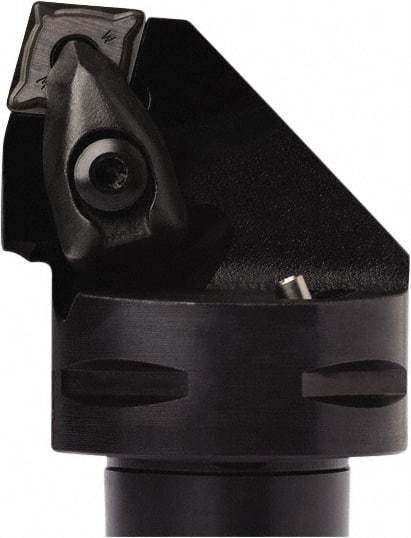

Seco - Left Hand Cut, Size C6, CN.. 1606.. Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 65mm Head Length, Series Seco-Capto
Item #: 77904217
Brand: Seco
Model #: 33781
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | CN.. 1606.. |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | CNMA 160608; CNMA 160612; CNMA 160616; CNMG 160608-M1; CNMG 160608-M3; CNMG 160608-M5; CNMG 160608-MF4; CNMG 160608-MR4; CNMG 160608-MR7; CNMG 160612-M1; CNMG 160612-M3; CNMG 160612-M5; CNMG 160612-M6; CNMG 160612-MF4; CNMG 160612-MR4; CNMG 160612-MR6; CN |
