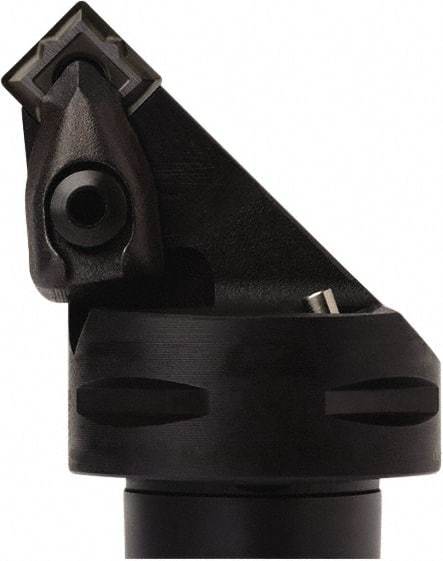

Seco - Right Hand Cut, Size C6, SNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 44.96mm Ctr to Cutting Edge, 64.26mm Head Length, Series Seco-Capto
Item #: 77904167
Brand: Seco
Model #: 33946
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 64.26 |
| Head Length/Projection (Decimal Inch) | 2.5300 |
| Insert Style | SNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 44.96 |
| Center to Cutting Edge (Decimal Inch) | 1.7700 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -8 |
| Neck Diameter (mm) | 62.99 |
| Neck Diameter (Decimal Inch) | 2.4800 |
| Complete Insert Compatibility | SNMG 432-M3; SNMG 432-M3(O); SNMG 432-M5; SNMG 432-MF2; SNMG 432-MF4; SNMG 432-MR3; SNMG 432-MR4; SNMG 432-MR7 |
