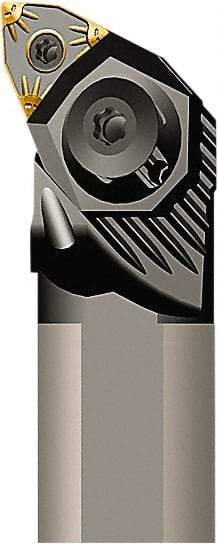

Seco - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-PWLN Indexable Boring Bar - 31mm Max Bore Depth, WNMG 0604.. Insert, Screw Holding Method
Item #: 77903334
Brand: Seco
Model #: 36896
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PWLN |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 31.00 |
| Maximum Bore Depth (Decimal Inch) | 1.2205 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | WNMG 0604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Complete Insert Compatibility | WNGG 060402-MF1; WNMG 060402-M3; WNMG 060404-M3; WNMG 060404-MF1; WNMG 060404-MF2; WNMG 060404-MF4; WNMG 060404-MF5; WNMG 060404W-MF2; WNMG 060408-M3; WNMG 060408-M4; WNMG 060408-M5; WNMG 060408-MF1; WNMG 060408-MF2; WNMG 060408-MF3; WNMG 060408-MF4; WNMG |
| Toolholder Material | Steel |
