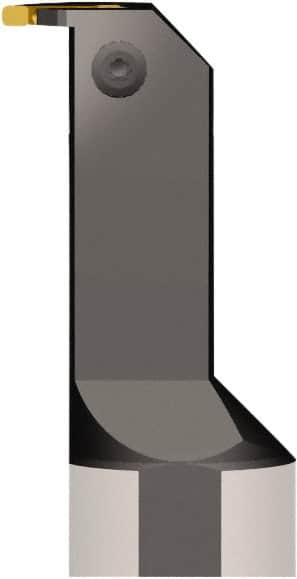

Seco - 32mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, A-CGG Indexable Boring Bar - 60mm Max Bore Depth, LC.. 1604.. Insert, Clamp Holding Method
Item #: 77902575
Brand: Seco
Model #: 59281
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CGG |
| Series | Multi-Directional Turning (MDT) |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | LC.. 1604.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 23.95 |
| Center to Cutting Edge (Decimal Inch) | 0.9430 |
| Complete Insert Compatibility | LCGF 160402-0400-GG; LCMF 160402-0400-FT; LCMF 160402-0400-MC; LCMF 160402-0400-MCL6; LCMF 160402-0400-MCR6; LCMF 160404-0400-MT; LCMF 1604M0-0400-MP; LCMR 160408-0400-MT |
| Toolholder Material | Steel |
