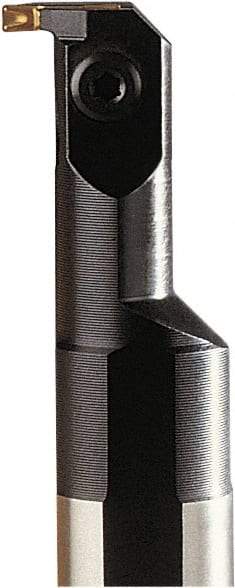

Seco - 32mm Min Bore Diam, 301.07mm OAL, 32mm Shank Diam, A-CGJ Indexable Boring Bar - 77mm Max Bore Depth, LC.. 1303.. Insert, Clamp Holding Method
Item #: 77902559
Brand: Seco
Model #: 53900
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CGJ |
| Series | Multi-Directional Turning (MDT) |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 77.00 |
| Maximum Bore Depth (Decimal Inch) | 3.0315 |
| Overall Length (mm) | 301.07 |
| Overall Length (Decimal Inch) | 11.8530 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | LC.. 1303.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 25.50 |
| Center to Cutting Edge (Decimal Inch) | 1.0040 |
| Complete Insert Compatibility | LCGA 130300-0115-FG; LCGA 130300-0135-FG; LCGA 130301-0165-FG; LCGA 130301-0190-FG; LCGF 130302-0300-GG; LCGF 130302-GS; LCMF 130302-0300-FT; LCMF 130304-0300-FT; LCMF 130304-0300-MC; LCMF 1303M0-0300-MP; LCMR 130302-0300-FT; LCMR 130304-0300-FT; LCMR 130 |
| Toolholder Material | Steel |
