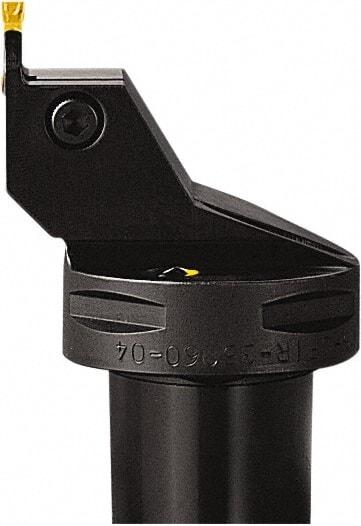

Seco - LC.. 1606.. Insert, 65mm Head Length, 6mm Min Groove Width, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size C5, Series Multi-Directional Turning (MDT), Seco-Capto
Item #: 77901338
Brand: Seco
Model #: 07137
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Multi-Directional Turning (MDT); Seco-Capto |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | LC.. 1606.. |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Complete Insert Compatibility | LCGF 160300-0318-RP; LCGF 160301-0300-FG; LCGF 160302-0300-GG; LCGF 160302-0300-GS; LCGF 1603M0-0300-RP; LCGN 160300-0115-FG; LCGN 160300-0135-FG; LCGN 160301-0165-FG; LCGN 160301-0190-FG; LCGN 160301-0215-FG; LCGN 160302-0265-FG; LCGN 160302-0300-FG |
| Minimum Groove Width (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
