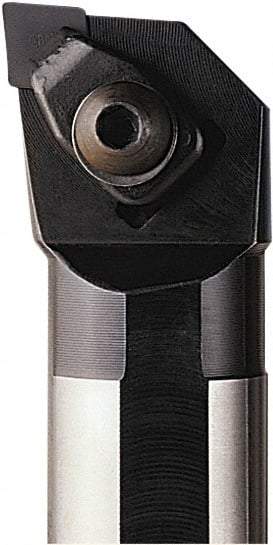

Seco - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, S-CCLN Indexable Boring Bar - 40mm Max Bore Depth, CNGN 0903.. Insert, Clamp Holding Method
Item #: 77900090
Brand: Seco
Model #: 69269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CCLN |
| Series | Clamp Lock |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | CNGN 0903.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -6 |
| Complete Insert Compatibility | CNGN 090304S-01020; CNGN 090304S-01020-WZ; CNGN 090308S-01020; CNGN 090312S-01020 |
| Toolholder Material | Steel |
