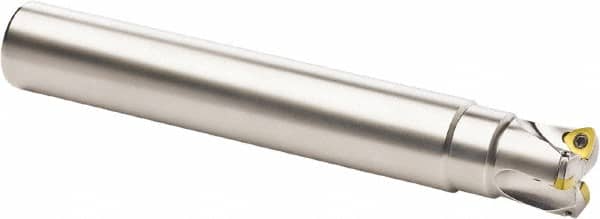

Seco - 32mm Cut Diam, 0.0394" Max Depth, 25mm Shank Diam, Cylindrical Shank Indexable High-Feed End Mill - Screw Holding Method, 218.19-125 Insert, R217.21 Toolholder, Through Coolant
Item #: 77899854
Brand: Seco
Model #: 39122
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number of Cutter Inserts | 2 |
| Insert Style | 218.19-125 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Minimum Cutting Diameter (Decimal Inch) | 0.8268 |
| Maximum RPM | 19700 |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 195.00 |
