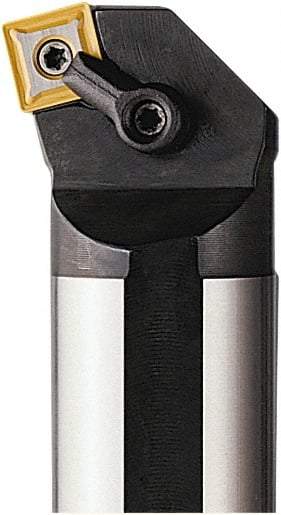

Seco - 50mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, S-MSKN Indexable Boring Bar - 60mm Max Bore Depth, SN.. 1204.. Insert, Pin & Clamp Holding Method
Item #: 77899243
Brand: Seco
Model #: 02265
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MSKN |
| Series | Multi-Option |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | SN.. 1204.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 75 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | SNGA 120408S-02020-L1-D; SNMA 120408; SNMA 120412; SNMA 120416; SNMG 1204; SNMG 120404-M3; SNMG 120408-M1; SNMG 120408-M3; SNMG 120408-M5; SNMG 120408-MF1; SNMG 120408-MF2; SNMG 120408-MF4; SNMG 120408-MR3; SNMG 120408-MR4; SNMG 120408-MR7; SNMG 120412-M3 |
| Toolholder Material | Steel |
