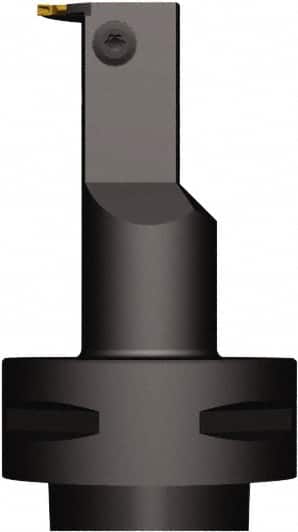

Seco - Left Hand Cut, Size C4, LCMF 1902 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 14.48mm Ctr to Cutting Edge, 74.93mm Head Length, Series MDT & Seco-Capto
Item #: 77897924
Brand: Seco
Model #: 65785
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | MDT; Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 74.93 |
| Head Length/Projection (Decimal Inch) | 2.9500 |
| Insert Style | LCMF 1902 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 14.48 |
| Center to Cutting Edge (Decimal Inch) | 0.5700 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Neck Diameter (mm) | 39.88 |
| Neck Diameter (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | LCMF 190202-0200-FT; LCMF 190202-0200-FTL6; LCMF 190202-0200-FTR6; LCMF 1902M0-0200-MP |
