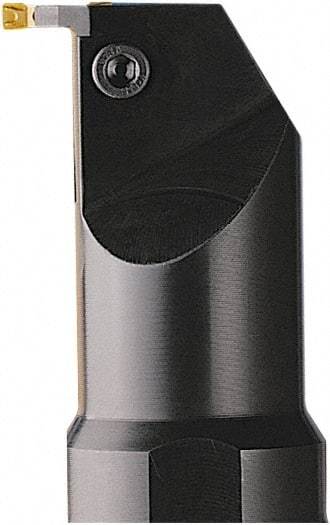

Seco - 45mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-CGG Indexable Boring Bar - 60mm Max Bore Depth, LC.. 1606.. Insert, Clamp Holding Method
Item #: 77897148
Brand: Seco
Model #: 13457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CGG |
| Series | Multi-Directional Turning (MDT) |
| Minimum Bore Diameter (mm) | 45.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.7717 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Maximum Bore Depth (Decimal Inch) | 2.3622 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | LC.. 1606.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 29.01 |
| Center to Cutting Edge (Decimal Inch) | 1.1420 |
| Complete Insert Compatibility | LCGN 160604-0600E-LF; LCGN 160604-0600S-LF; LCGN 1606M0-0600E25-LF; LCGN 1606M0-0600S-LF; LCMF 160604-0600-FT; LCMF 160605-0635-FT; LCMF 160608-0600-FT; LCMF 160610-0600-FT |
| Toolholder Material | Steel |
