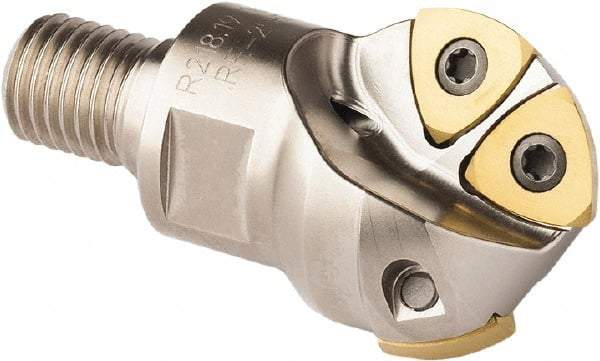

Seco - 40.01mm Cut Diam, 24.99mm Max Depth of Cut, Indexable Ball Nose End Mill - 50.01mm Head Length, M16 Modular Connection, R218.19 Toolholder, 218.19 200 Insert
Item #: 77895753
Brand: Seco
Model #: 89918
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.01 |
| Cutting Diameter (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (mm) | 24.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Ball Nose Inserts Used on Toolholder | 3 |
| Insert Style | 218.19 200 |
| Toolholder Style | R218.19 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (mm) | 50.01 |
| Head Length (Decimal Inch) | 1.9690 |
| Maximum RPM | 10400 |
