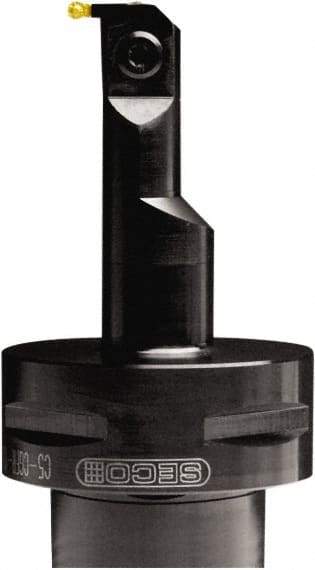

Seco - Right Hand Cut, Size C5, LC.. 1304.. Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 25.5mm Ctr to Cutting Edge, 110mm Head Length, Series Seco-Capto
Item #: 77894236
Brand: Seco
Model #: 59297
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Insert Style | LC.. 1304.. |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 25.50 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 110.00 |
| Maximum Hole Depth (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | LCGA 130402-0400-FG; LCGF 130402-0400-GG; LCGF 130402-0400-GS; LCGN 130404-0400S-LF; LCGN 1304M0-0400S-LF; LCMF 130402-0400-FT; LCMF 130404-0400-FT; LCMF 130404-0400-MC; LCMF 1304M0-0400-MP; LCMR 130404-0400-FT; LCMR 1304M0-0400-MP |
