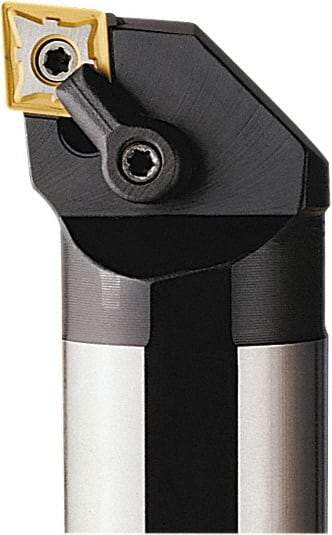

Seco - 63mm Min Bore Diam, 400mm OAL, 50mm Shank Diam, S-MCLN Indexable Boring Bar - 70mm Max Bore Depth, CNM.. 1906.. Insert, Pin & Clamp Holding Method
Item #: 77892834
Brand: Seco
Model #: 18820
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MCLN |
| Series | Multi-Option |
| Minimum Bore Diameter (mm) | 63.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.4803 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 70.00 |
| Maximum Bore Depth (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 400.00 |
| Overall Length (Decimal Inch) | 15.7480 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Insert Compatibility | CNM.. 1906.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 19.05 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Rake Angle | -5 |
| Complete Insert Compatibility | CNMA 190612; CNMA 190616; CNMG 190608-M1; CNMG 190608-M3; CNMG 190608-M5; CNMG 190608-MR7; CNMG 190612-M1; CNMG 190612-M3; CNMG 190612-M5; CNMG 190612-MF4; CNMG 190612-MR4; CNMG 190612-MR6; CNMG 190612-MR7; CNMG 190616-M3; CNMG 190616-M5; CNMG 190616-MR4 |
| Toolholder Material | Steel |
