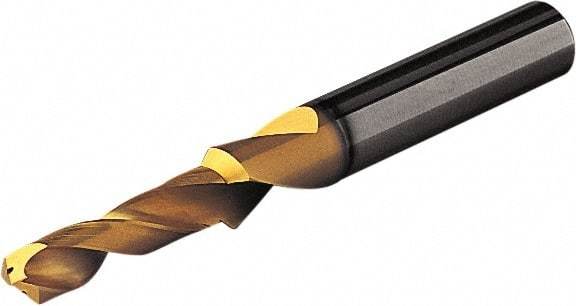

Seco - 12mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit - Multilayer TiAlN Finish, Right Hand Cut, 70mm Flute Length, 115mm OAL, Straight Shank, Through Coolant
Item #: 77889731
Brand: Seco
Model #: 22958
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Titanium Aluminum Nitride (TiAlN) is a blended coating that is more efficient than TIN. It offers a high level of wear resistance at higher cutting speeds and used on high alloy steels and cast iron.
Spiral flutes are constructed of a higher flute angle to remove chips easier.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Drill Bit Size (mm) | 12.00 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 70.00 |
| Flute Length (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5276 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Specification Designation | DIN |
| Maximum Drilling Depth (mm) | 34.50 |
| Maximum Drilling Depth (Decimal Inch) | 1.3583 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | +0.007 to +0.025 |
| Specification Number | DIN 6537A |
| Web Thinning | Web-Thinned |
| Series/List | SD203A |
| Length Type | Stub |
