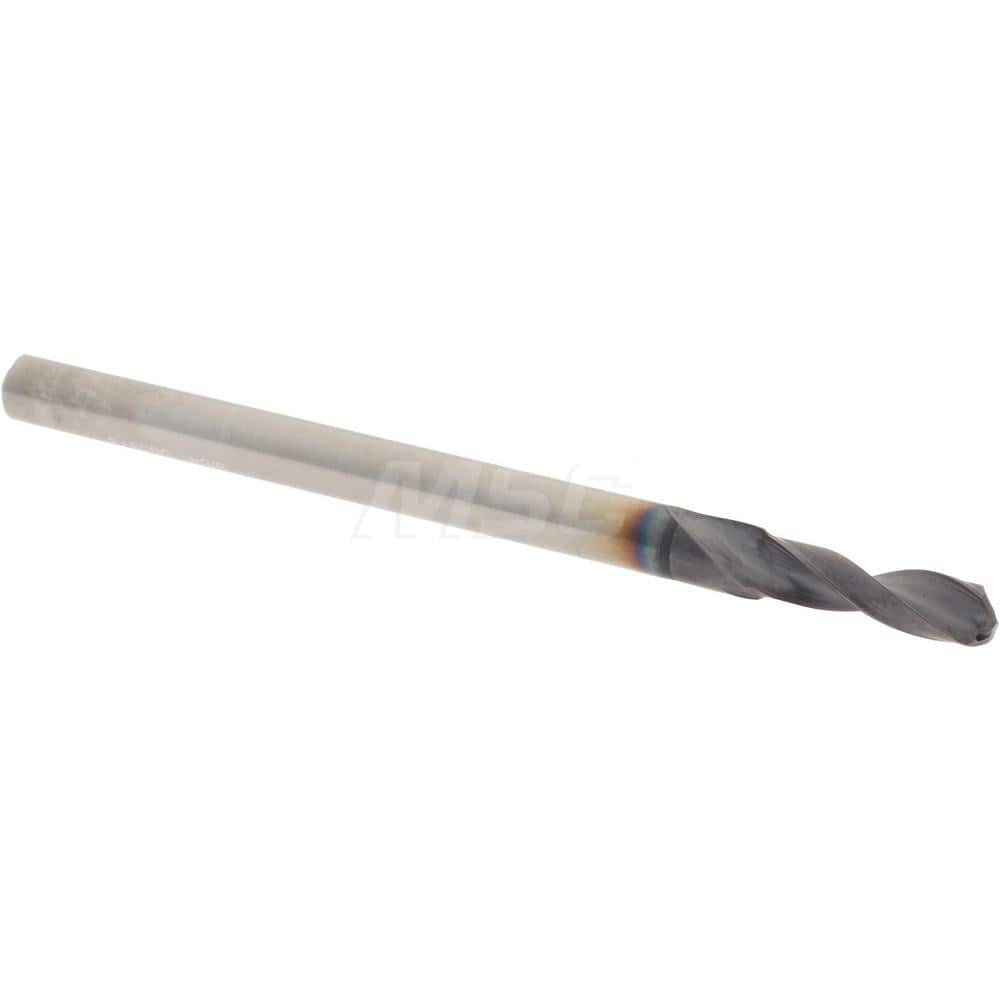

Screw Machine Length Drill Bit: 0.1406″ Dia, 140 °, Solid Carbide AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 77713113
Brand: Accupro
Model #: 77713113
Product Specifications
| Drill Bit Size (Inch) | 9/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Diameter (mm) | 4.00 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (Decimal Inch) | 0.4220 |
| Shank Length (Decimal Inch) | 1.9134 |
| Shank Length (mm) | 48.60 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (mm) | 13.40 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Material Grade | Submicron |
