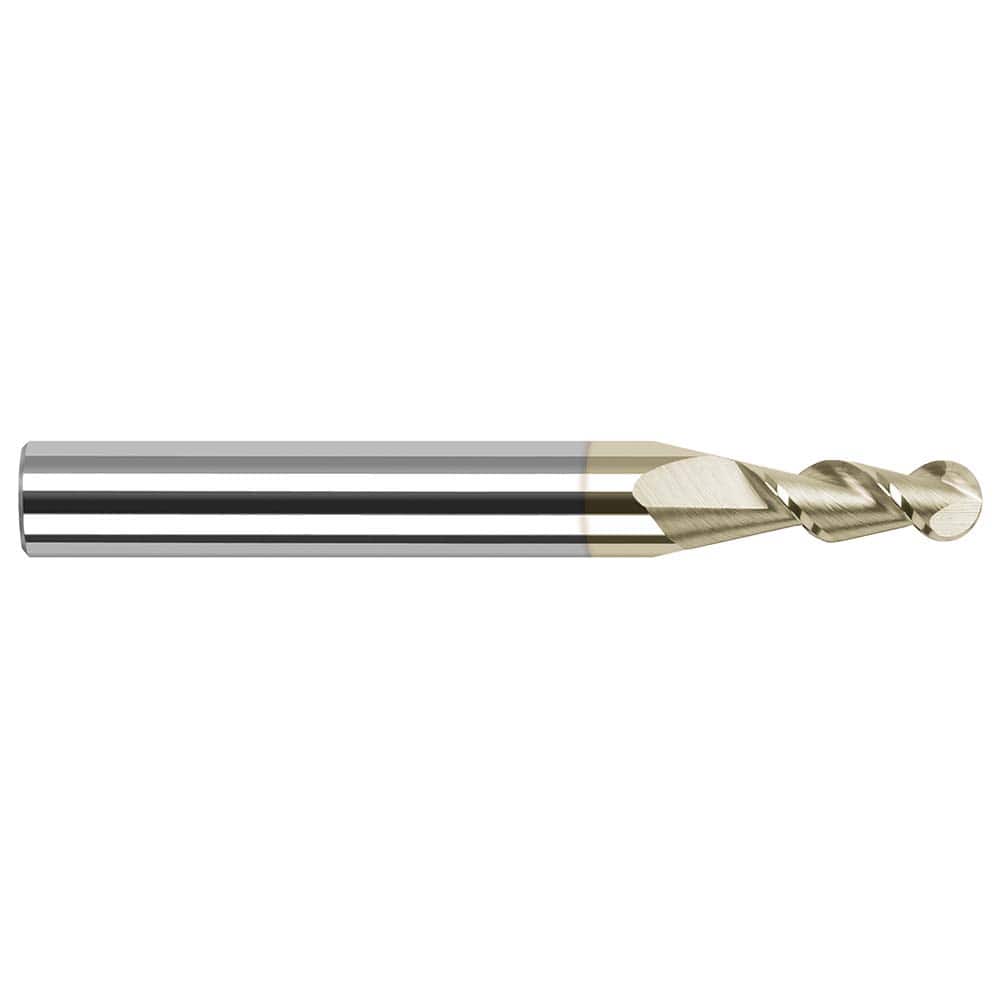

Harvey Tool - Ball End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0780 ; Number of Flutes: 2 ; Length of Cut (Inch): 15/64 ; Length of Cut (Decimal Inch): 0.2340 ; Material: Solid Carbide
Item #: 77650869
Brand: Harvey Tool
Model #: 27878-C7
Product Specifications
Ball End Mills; Mill Diameter (Inch): 5/64 ; Mill Diameter (Decimal Inch): 0.0780 ; Number of Flutes: 2 ; Length of Cut (Inch): 15/64 ; Length of Cut (Decimal Inch): 0.2340 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/64 |
| Mill Diameter (Decimal Inch) | 0.0780 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 15/64 |
| Length of Cut (Decimal Inch) | 0.2340 |
| Material | Solid Carbide |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | ZrN |
| Single or Double End | Single |
| Helix Angle | 45 |
| Variable Helix | No |
| Helix Style | High |
| Series/List | High Helix End Mills for Aluminum Alloys - 45? Helix - Ball |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
