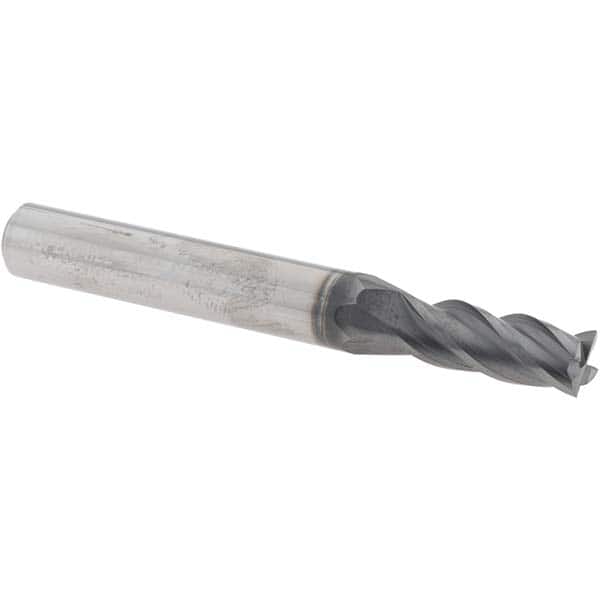

Square End Mill: 5/16'' Dia, 3/4'' LOC, 5/16'' Shank Dia, 2-1/2'' OAL, 4 Flutes, Solid Carbide Single End, AlCrN Finish, Helical Flute, Centercutting, RH Cut, Series SAP
Item #: 77650042
Brand: Supermill
Model #: SAP265
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 35 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Overall Length Tolerance | +0.050/-0.000 in |
| Series | SAP |
