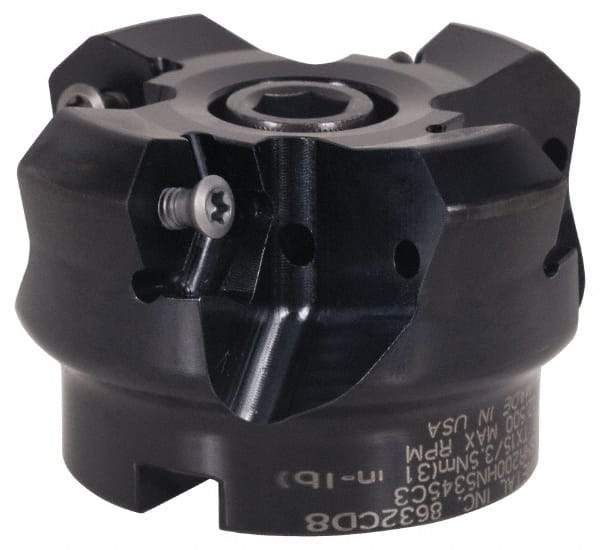

Kennametal - 5" Cut Diam, 1" Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 8 Inserts, HNGJ 0905ANENLD Insert, Right Hand Cut, 8 Flutes, Series KSHR
Item #: 77462018
Brand: Kennametal
Model #: 3747127
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | HNGJ 0905ANENLD |
| Series | KSHR |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | KSHR |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.6520 |
| Maximum Body Diameter (Decimal Inch) | 5.4310 |
| Maximum RPM | 5000 |
| Cutting Direction | Right Hand |
| Pitch | Extra Coarse |
