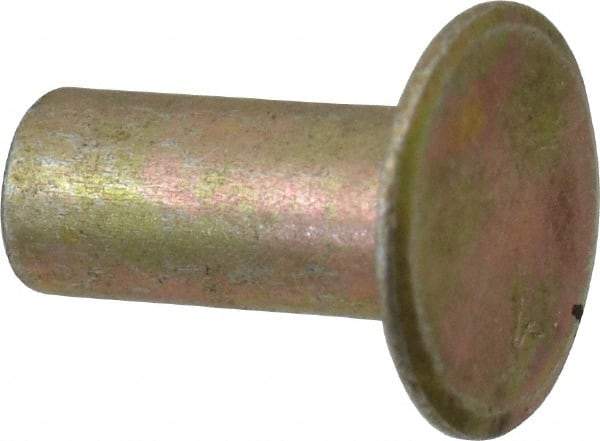

RivetKing - 0.1 to 0.17" Hole Diam, Countersunk Head, Zinc Plated Steel, Semi Tubular Rivet - 5/16 Head Diam, 5/16" Length Under Head, 150° Countersunk Head, 9/64 Body Diam
Item #: 77432680
Brand: RivetKing
Model #: XCM312010SY
Exact Tooling IR#: 04
Features and Benefits
Semi tubular rivets have a head on one end and a shank on the other that is partially hollow along its length. When installed, the partially hollow portion buckles up and holds the workpiece.
Countersunk head rivets lie flush against the workpiece material and have large bearing surfaces.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Semi Tubular Rivet |
| Head Type | Countersunk |
| Minimum Hole Diameter (Decimal Inch) | 0.1000 |
| Maximum Hole Diameter (Decimal Inch) | 0.1070 |
| Body Diameter (Inch) | 9/64 |
| Length Under Head (Inch) | 5/16 |
| Head Diameter (Decimal Inch) | 0.3125 |
| Head Diameter (Inch) | 5/16 |
| Countersunk Head Angle | 150.00 |
| Material | Steel |
| Finish/Coating | Zinc-Plated |
