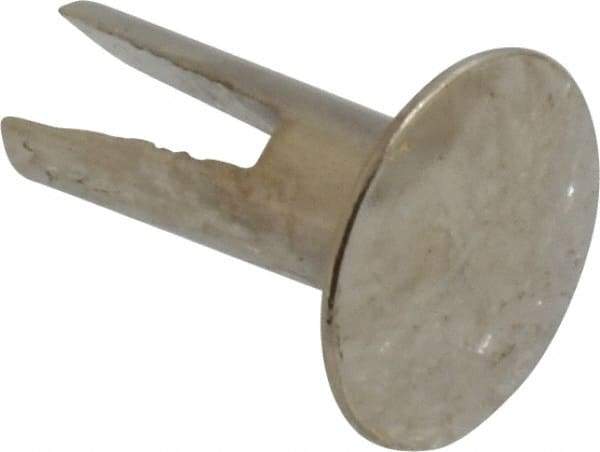

RivetKing - 0.1 to 0.17" Hole Diam, Dome Head, Nickel Plated Steel, Split Rivet - 5/16 Head Diam, 3/8" Length Under Head, 9/64 Body Diam
Item #: 77432615
Brand: RivetKing
Model #: XPM312012SN
Exact Tooling IR#: 04
Features and Benefits
Split rivets have legs that split below the head when installed in a hole.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Split Rivet |
| Head Type | Dome |
| Minimum Hole Diameter (Decimal Inch) | 0.1000 |
| Maximum Hole Diameter (Decimal Inch) | 0.1070 |
| Body Diameter (Inch) | 9/64 |
| Length Under Head (Inch) | 3/8 |
| Head Diameter (Decimal Inch) | 0.3125 |
| Head Diameter (Inch) | 5/16 |
| Material | Steel |
| Finish/Coating | Nickel-Plated |
