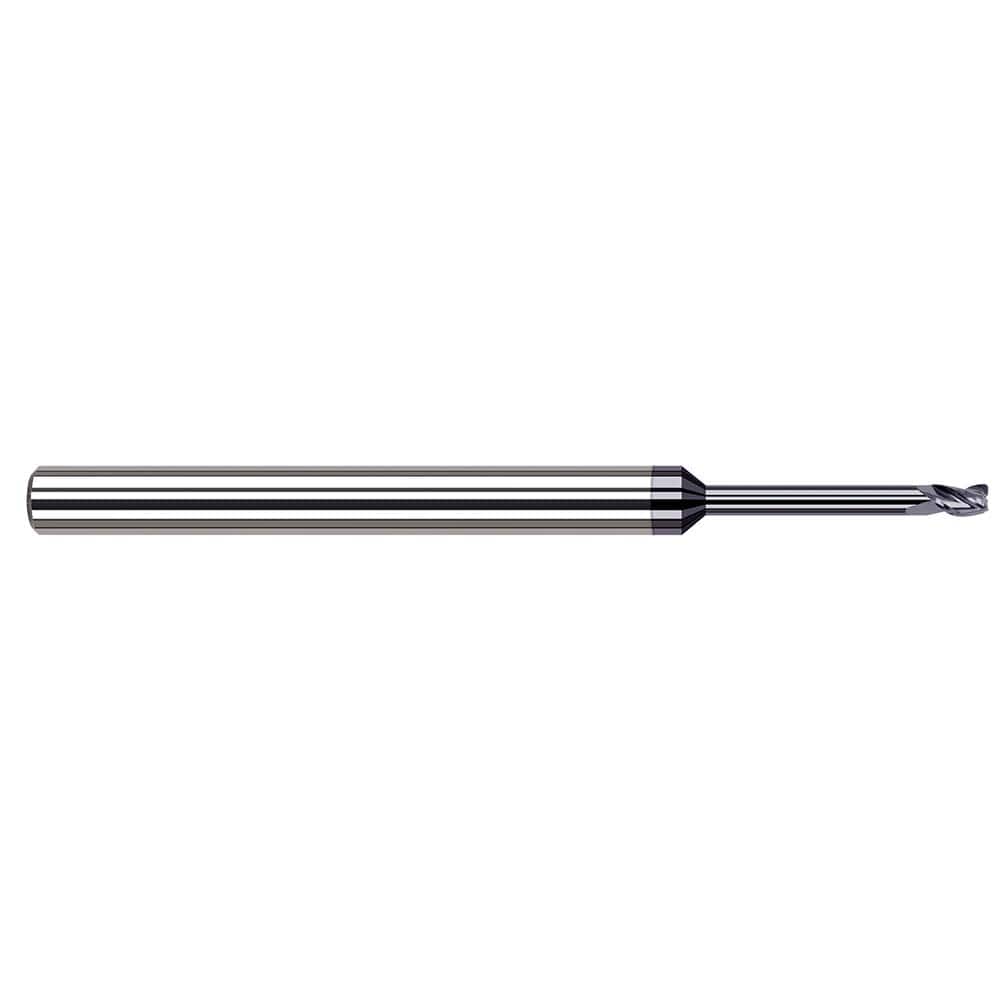

Harvey Tool - 0.5mm Diam 3 Flute Solid Carbide 0.1mm Corner Radius
Item #: 77396414
Brand: Harvey Tool
Model #: 54820-C6
Product Specifications
| Mill Diameter (mm) | 0.50 |
| Mill Diameter (Decimal Inch) | 0.0200 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN Nano |
| Length of Cut (Decimal Inch) | 0.0300 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Reach Length (Decimal Inch) | 0.1600 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for High Temp Alloys - Corner Radius - Long Reach, Stub Flute |
