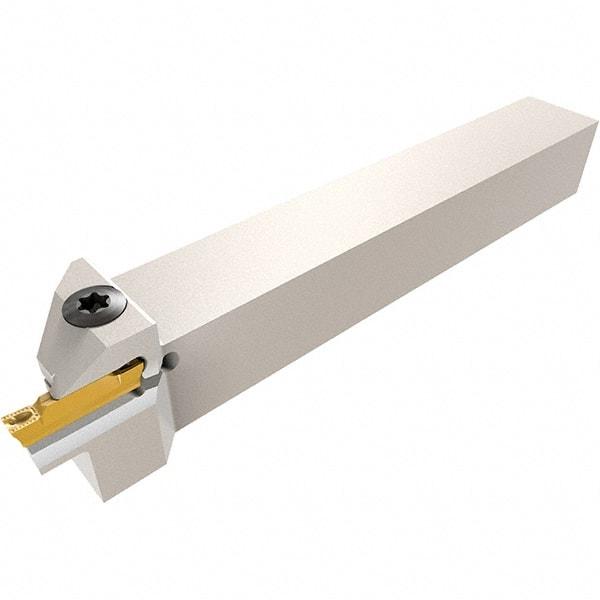

Iscar - HGH, External, Right Hand, 0.236" Max Depth of Cut, 0.118" Max Groove Width, Indexable Grooving Tool Holder - GRIP, HGN Insert Compatibility, 1" Shank Height, 1" Shank Width, 5" OAL
Item #: 77352227
Brand: Iscar
Model #: 2500699
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | HGH |
| Insert Compatibility | GRIP; HGN |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Maximum Groove Outside Diameter (Decimal Inch) | 0.9800 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 0.6300 |
| Head Height (Decimal Inch) | 1.2000 |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 4.2500 |
| Complete Insert Compatibility | GRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT |
