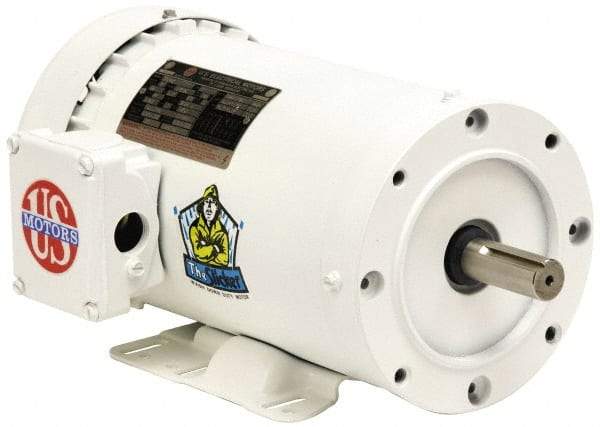

US Motors - 1.5 hp, TENV Enclosure, No Thermal Protection, 3,450 RPM, 208-230/460 Volt, 60 Hz, Three Phase Energy Efficient Motor - Size 56 Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 3.572 Full Load Amps, F Class Insulation, Reversible
Item #: 77168086
Brand: US Motors
Model #: WD32S1AC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | TENV |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3450 |
| Voltage | 208-230/460 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | C-Face/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Washdown |
| Full Load Amperage | 3.572 |
| Insulation Class | F |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 12.7500 |
| Shaft Diameter x Length (Inch) | 5/8 x 2-1/16 |
| Full Load Efficiency Rating | 89.19 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| Length of Enclosure (Decimal Inch) | 87.127 |
| PSC Code | 6105 |
