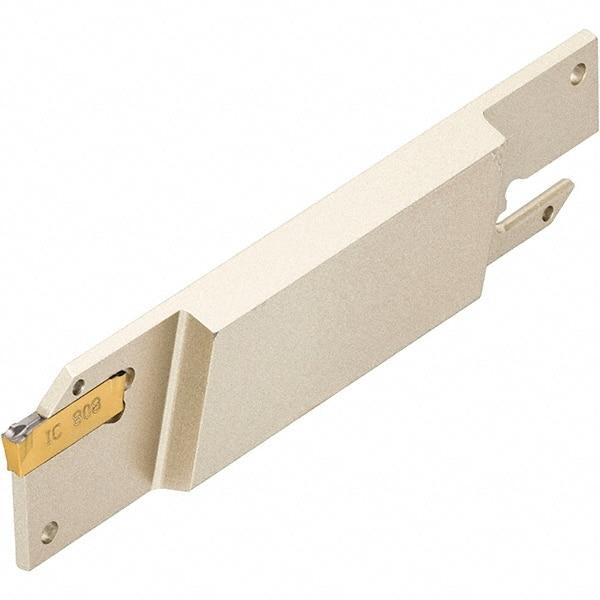

Iscar - 3 to 3.18mm Groove Width, Left Hand Cut, DGFH Indexable Grooving Blade - DGN-LF/LFT, DGN-P, DGN-UT/UA, DGN-Z, DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGR/L-C DGRC/LC-C, DGR/L-J/JS, DGR/L-Z/ZS Insert Style, Series Do-Grip
Item #: 77140937
Brand: Iscar
Model #: 2301343
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Blade Style | DGFH |
| Series | Do-Grip |
| Maximum Workpiece Diameter (mm) | 60.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3622 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Insert Style | DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR/L-Z/ZS |
| Complete Insert Compatibility | DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGN 3000P; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102LF; DGN 3102LFT; DGNC 3102C; DGNM 3202C; DGR 3000ZS-15D; DGR 3000ZS-6D |
